Product Information
Profile: 6063-T5 high-precision aluminum
Insulation strip: PA66-GF25 nylon insulation strip
Glue strip: EPDM EPDM foam rubber strip
Corner: split expansion corner
Corner glue: two-component polyurethane corner glue
Corners use solid screws + split corner glue injection process
Drainage uses zinc alloy floor drain drainage system, built-in 304 stainless steel windshield
Isobaric uses double overlap process, corners use vulcanization welding, stronger sealing
Product Parameters
Serial Number | Name | Specification | Remark |
1 | Aluminum Profile 6063T5 | 85 | Raw aluminum |
2 | Surface treatment | Metal powder coating | |
3 | Indoor and outdoor colors | Indoor: Silver Gray, Brown Silver, Starry Black, Champagne Gold, Pearl White, Coffee Outdoor: Gray Sand, Coffee | Customized colors require communication |
4 | Closed pressure line | Not easy to deform, making the whole window safer | Raw aluminum |
5 | Insulation strips | Add 25% glass fiber national standard nylon PA66 | Multi-cavity is not easy to deform |
6 | Hardware | Invisible inward opening and tilting | Full set of invisible hardware including handles |
7 | Glass Configuration | Three-glass hollow 5mm+12A+5mm+12A+5mm | Fully tempered bending standard |
8 | System accessories | Sandblasting and glue injection corners, reinforcement and glue injection parts, alloy parts, etc. | |
9 | System accessories | EPDM dustproof strip | Effective heat preservation, no water absorption, no aging, and quieter |
10 | Corner glue | Two-component | Two-component polyurethane corner glue |
11 | Sealing strips | EPDM soft and hard co-extruded foam strips | |
12 | Isobaric adhesive strips | EPDM soft and hard co-extruded vulcanized integrated foam strip | The overall isotherm systematization design integrates energy saving and environmental protection, making it more comfortable |
13 | Floor drain system | Prevent rainwater from flowing back, prevent mosquitoes, and ensure the strength of aluminum | Avoid invisible drainage that reduces aluminum strength |
14 | R corner process | Zinc alloy upgraded small R angle | Anti-collision, more humanized design |
Detailed Image

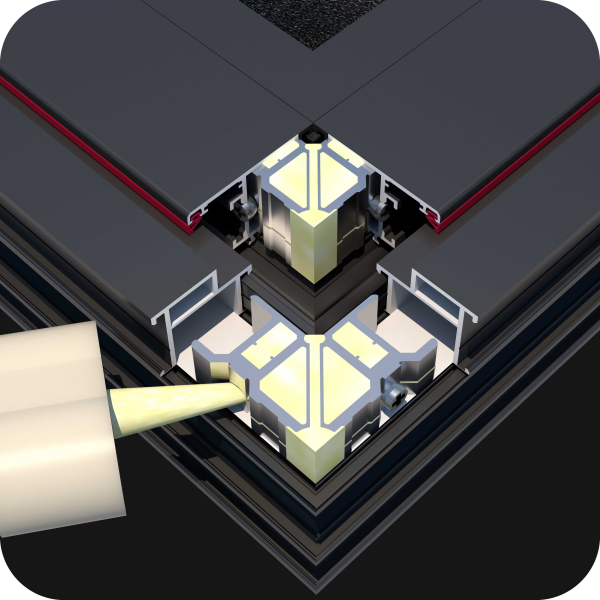

Glue Injection Section Glue Brush

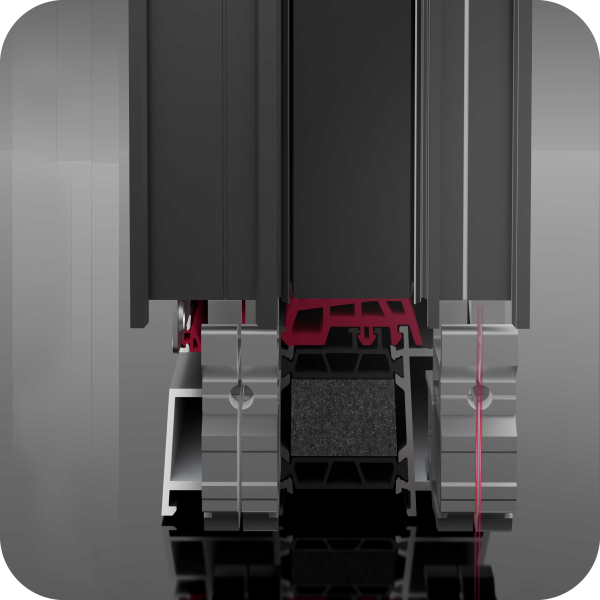

Split Corner Square crimping

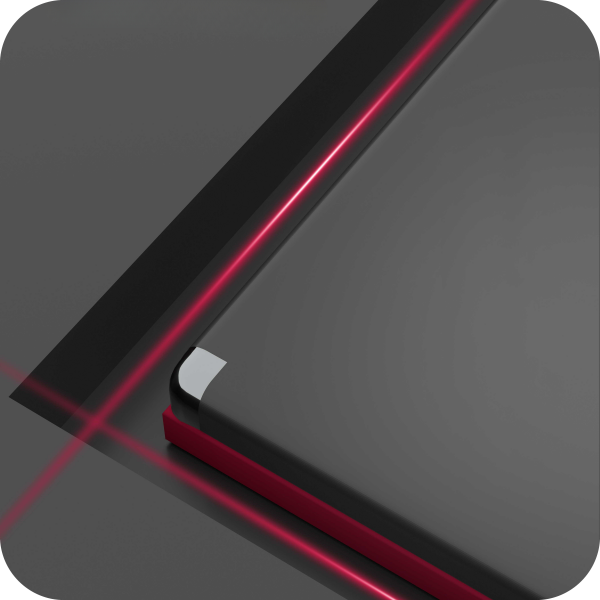

Inner Corner Guard External Corner Guard
